Kevlar Blankets

BALLISTIC, BURST AND PRESSURE PROTECTION

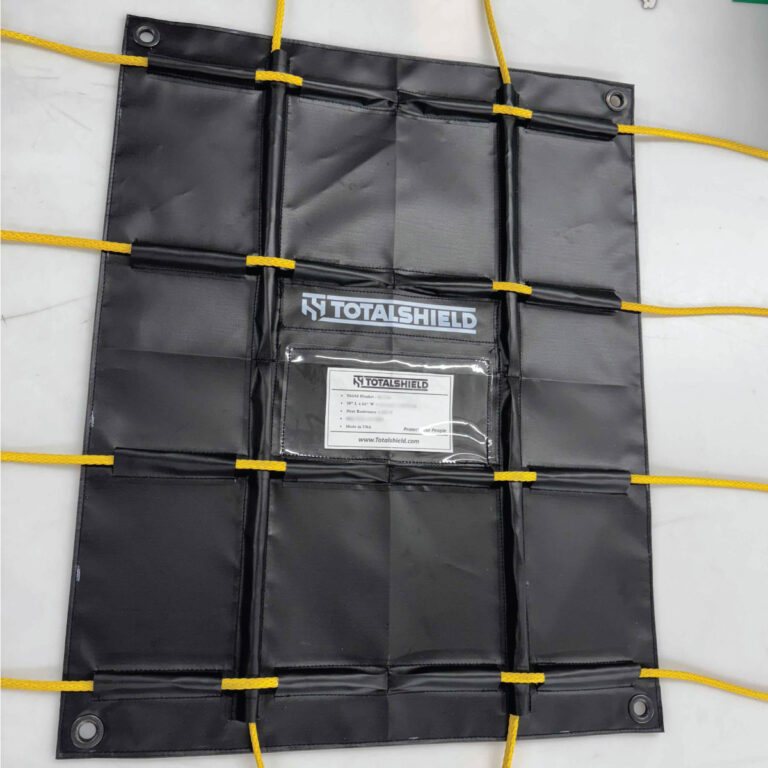

Kevlar Shielding Blankets

Our Kevlar blankets are custom-engineered barriers to mitigate a range of blasts, including gas or water jets, and capture high-velocity shrapnel in constrained spaces. Their aramid fiber inner layers and protective outer layers are ballistic and heat-resistant. We calculate the level of protection you need using empirical equations developed through testing.

Features:

  • Manufactured with Kevlar inter-layers
  • Resist forces as strong as 1700 psi per layer
  • Outer-layers are made with polyester vinyl or silicone-coated fiberglass

Talk to an expert to determine the adequate number of inter-layer of Kevlar.

Custom shield blanket

Industry Applications for Blast Proof Kevlar Shield Blankets

Burst and Pressure Testing

Our blast blankets are fabricated with heat and ballistic-resistant materials. They provide impact protection against blast loads, such as vapor cloud explosions, pressure waves, flying shrapnel, ballistic fragments, and more.

Fitting Protection

We can design our blast-resistant blankets and tarps in different sizes and shapes. We also customize them with integral Kevlar rope tie-downs, allowing fitting protection on complex geometric assemblies and easy removal.

New Product Development and Testing

Testing shouldn’t mean building new facilities. Our shielding blankets can be used for a range of testing applications, such as pressure and ballistics, without the need to adapt or build new facilities for hazardous scenarios.

Impact Protection in Constrained Spaces

TotalShield’s containment blankets provide a high-impact shield that can be adapted to different equipment and limited spacing. While maintaining their flexible and portable characteristics, their blast protection is not affected in any way.

Discover Our Blast-Resistant Blankets

Picture of containment blankets bolted on equipment to protect against pressure testing.

For this project, our framed shielding blankets were customized with holes in all corners to be bolted to our customer’s equipment properly.

Blast blankets covering an industrial fan as secondary containment.

Customized impact-resistant blankets with two outer-layers of vinyl-coated polyester.

Picture of a TotalShield’s shielding blanket with a polycarbonate window.

TotalShield can customize shielding blankets with polycarbonate windows to allow testing monitoring without compromising the safety level.

Impact-resistant area curtain separators.

Sliding test cell curtain separators for reactor testing. The blankers are suspended from a trolley track when closed, creating two separate test areas

Protective blanket mounted on a mobile shield barrier, a product requested for aerospace applications.

Mobile shield barrier with a sliding shielding blanket door, manufactured for aerospace testing applications.

Blast blankets covering an industrial fan as secondary containment.

Blast blanket used as a secondary containment on an industrial fan. The integral rope tie-downs ensure impact-protection performance and easy removal.

Kevlar blanket made by TotalShield requested for reactor testing.

4’x4’ Kevlar blanket engineered for reactor testing procedures with one outer-layer of vinyl-coated polyester, one outer-layer of acrylic-coated fiberglass, and impact-resistant inter-layers.

Kevlar Blankets Specifications

 Outer-layer Materials 14 oz. Polyester vinyl
or
Silicone coated fiberglass material for higher heat-resistant needs
 Blast Overpressure Capabilities 1700 psi per layer. This measure is additive.
We can fabricate individual blankets with up to 15 inter-layers of Kevlar.
Let us know your application to determine the adequate number of inter-layers.
 Heat Resistance Capabilities Polyester vinyl: 200 °F
Silicone-coated fiberglass: 500 °F
Ask about our higher heat-resistant outer layers.

Contact Us

Different applications require different protection solutions.
Let us know if you need help determining the containment level you need.
