Mobile & Benchtop Safety Enclosures

Shielded Enclosures

Engineered to provide the utmost protection and security, our clear polycarbonate shield enclosures are certified and tested to protect against your specific threats.

GET MY QUOTE

Impact Enclosures

Our Shielded Enclosures line is designed to accommodate multiple test operations in limited space. They’re custom-made for your specific testing procedure and can be benchtop mountable or integrate a mobile cart.

TotalShield’s portable enclosures are engineered with impact-resistant polycarbonate panels and our proprietary steel and aluminum framing system, offering protection against ballistic and explosive blasts.

Our proprietary framing system allows our products to be configured in any shape and size while maintaining high-impact force protection. Whether you need a portable, semi-permanent, modular, or benchtop enclosure, we’ve got you covered.

Features

Engineered to your energy impact threat level

Thoroughly tested offering blast, Level A Ballistic, and Level I to III forced entry protection

Full range of features –Mobile cart, benchtop mountable, access panels, and more

Clear polycarbonate panels to allow procedure observance at all moments

Overpressure venting

No building permits required

Designed to accommodate multiple test operations in limited space

Interface panels allow utilities, hose, wire pass-throughs

Custom sizes and shapes

Can be combined with other TotalShield products for a complete shielding solution

Take a Look at Our Past Projects

All
Benchtop Enclosures
Lithium-ion Battery Enclosures
Portable Enclosures

Blast-resistant transparent compartment box made by TotalShield for reactor testing.

TotalShield’s blast-resistant transparent shield with 4 reactors, designed for reactor testing procedures.

TotalShield’s bonded enclosure for ballistic applications.

Benchtop ammunition loading station with a bullet resistance rating of HP White Level B 9mm Luger

Transparent pneumatic pressure testing containment.

Transparent benchtop shield enclosure designed with mar-resistant polycarbonate laminate solvent weld bonded construction. Requested as pneumatic pressure testing containment.

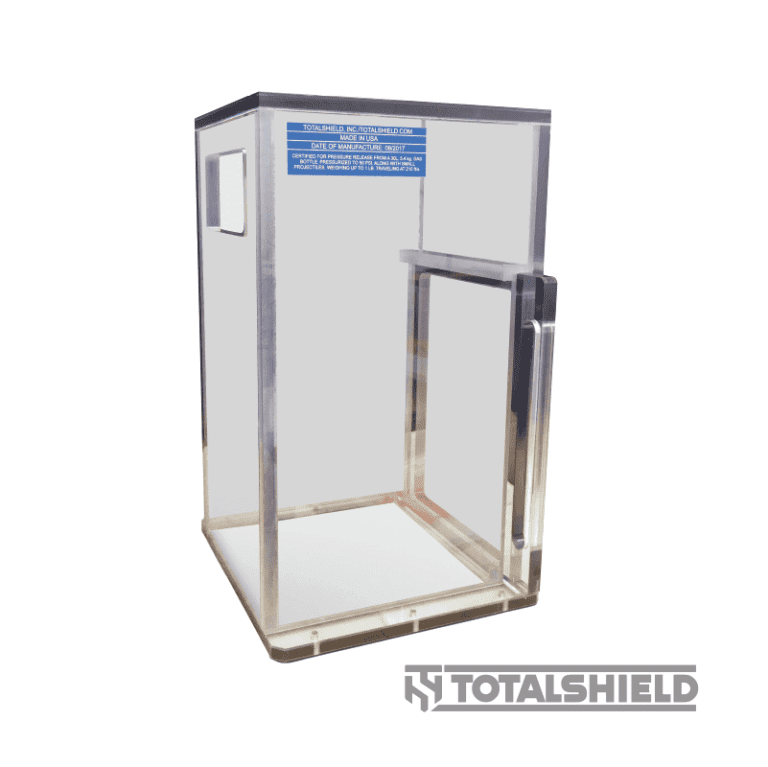

Clear bonded enclosure for ballistic applications

Custom tested containment enclosure manufactured by TotalShield for pneumatic pressure testing procedures. Features include interface and venting panels, mobile cart base, dual sliding doors, and steel plate base.

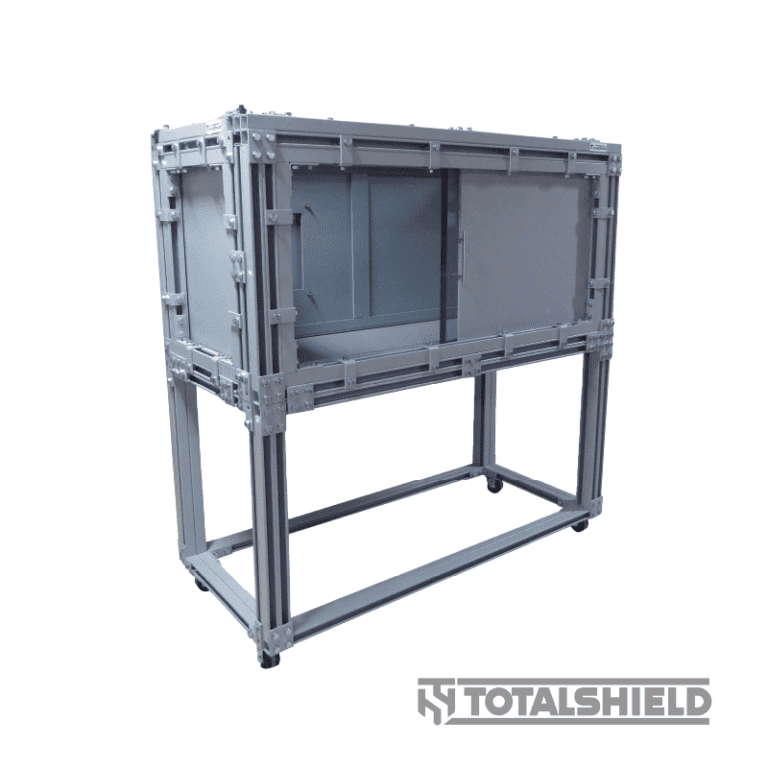

Explosion-resistant mobile containment manufactured with steel and polycarbonate.

Mobile containment with mobile cart, transparent sliding door and roof panel. Dimensions: 52 in L x 30 in W x 30 in H

Portable shield enclosure with mar-resistant polycarbonate, and powder-coated steel and aluminum framing. Designed with a top and sliding front door and a cart with shelving.

Mobile containment enclosure designed for pneumatic pressure testing.

Portable shield enclosure with mar-resistant polycarbonate mounted in a TotalShield steel and aluminum framing system. It was designed with a removable front sliding door on teflon track. Requested for pneumatic pressure testing.

Transparent bonded enclosure with a front sliding door and two side vents.

Benchtop containment for a small test chamber containing 1g of TNT equivalent. It was enclosed on all sides with front sliding door access and two side vents. Dimensions: 18 in. x 18 in. x 18 in.

Lithium-ion battery enclosure for testing procedures. Includes a mobile cart base, top vent, an isolated heat shield and a base isolated test specimien stand.

TotalShield’s lithium battery test enclosure with polycarbonate panels and a mobile cart.

Mobile shield cart with steel base, removable side sliding door, and mobile cart with locking swivel caster wheels. Dimensions: 2 ft x 2 ft x 2 ft

Battery testing enclosure manufactured with polycarbonate panels.

Shield enclosure with mobile cart included.

Mobile shielding enclosure designed to contain projectiles impact from a pneumatic compressor upon failure. It's capable of withstanding fittings and components of small diameter, made of metal, and offers a pressure release solution through its vented panel on top of the unit. It also features a quick-access ballistic-rated polycarbonate sliding door.

Mobile enclosure designed to connect to a high-pressure and explosive blast test rig capable of containing fumes and overpressure peaks while maintaining visual contact with the process.

Shield enclosure with a vented shield panel without standoffs. In case of a flaming battery, it keeps the flames in the enclosure, but any overpressure inside will lift the panel and allow it to vent.

Enclosure with mobile cart designed for high-pressure pneumatic testing.

Enclosure designed for high-pressure pneumatic testing of a COPV (Composite Overwrapped Pressure Vessel). It features a vented shield panel in the ceiling to relieve pressure in case of a burst of the UUT, a heavy-duty mobile cart on locking casters, and a sliding door on ball rollers. It also has a steel interface panel for custom access holes.

Mobile enclosure with features that allow internal overpressure relief

Mobile enclosure designed with a vented offset shield panel in the ceiling for internal overpressure relief and steel user interface plate, which allows drilling holes and cutouts for access ports into the enclosure. The polycarbonate access panel door is installed on steel ball rollers for a more user-friendly access door.

Imagine 1, front. Lithium-ion battery testing enclosure with customized interface panels for user integration. It features a vented shield panel for internal overpressure relief, and a custom sliding poly access panel for full visibility into the enclosure.

Imagine 3, side. Lithium-ion battery testing enclosure with customized interface panels for user integration. It features a vented shield panel for internal overpressure relief, and a custom sliding poly access panel for full visibility into the enclosure.

Mobile Enclosure designed to contain high-impact upon pneumatic failure of a vessel charged with Helium. It includes a top and side vented panels to enhance max pressure release. It also features an internal polycarbonate sliding door NIJ Level 3 rated, and 4 sides with steel interface panels, with a powder gray coat finish, and a mobile cart with 4 wheels and 4 hoist rings.

Benchtop enclosure with 0.5” polycarbonate panel. It features a sliding door and a vented shield panel. It includes a custom design standoff to connect a solenoid or pneumatic valve. The bottom section has custom CNC drilling holes for ports and cable management.

Machine custom enclosure with mobile cart

Image 2, side. This enclosure is designed for pressurizing heat exchanger coils to test for leaks. It features a mild steel base, an interface panel, and a vented shield panel for overpressure release. The metal-framed mobile cart has caster wheels for easy relocation. Dimensions: 3 x 3 x 4 ft, 32” tabletop.

Image 1, front. This enclosure is designed for pressurizing heat exchanger coils to test for leaks. It features a mild steel base, an interface panel, and a vented shield panel for overpressure release. The metal-framed mobile cart has caster wheels for easy relocation. Dimensions: 3 x 3 x 4 ft, 32” tabletop.

Battery testing enclosure with polycarbonate panels

Imagine 2, side. Lithium-ion battery testing enclosure with customized interface panels for user integration. It features a vented shield panel for internal overpressure relief, and a custom sliding poly access panel for full visibility into the enclosure.

PEM electrolyzer testing enclosure, 3 x 3 x 3 ft, with a 32” tabletop. To tackle the threat of flames, fumes, and shrapnel impact, we included a vented shield panel for overpressure release, ballistic-rated polycarbonate panels, and a steel interface plate. It has a sliding door panel made of polycarbonate for quick access. Its mobile cart is capable of holding the weight of the unit under test, making it easy to relocate. All four wheels swivel and can be locked in place.

Prev1234567Next

See our battery testing enclosures

SAFETY SOLUTIONS FOR LIMITED SPACES

CUSTOM ENCLOSURES

Our portable safety boxes are meticulously designed to cater to test operations within confined spaces, including laboratories, assembly workstations, or shared operational areas.

With TotalShield you can have:

Mobile cart
Benchtop mountable
Access panels
Portability that enhances usability
And more

Talk to us and tell us what you require.

BULLET-RESISTANT ENCLOSURES SPECIFICATIONS

Polycarbonate sheets
Aluminum and steel framings
Steel plate
Glass clad polycarbonate
Ballistic glass
Ballistic panels

Your specific threat determines the material thickness used
We use ballistic hard coat polycarbonate thickness of 1/2”, 3/4”, and 1.25”
Glass-clad polycarbonate for special applications such as high heat are also available

Explosive rating

Ballistic rating
